AL Belt Driven Fan
American Coolair’s AL all-aluminum fans are the answer to concerns about rust and corrosion in today’s damp greenhouse environment. Combined with an aluminum wall housing, an aluminum shutter, and a vinyl coated wire guard, the AL fan will provide years of trouble-free and corrosion-free service. AL fans feature all-welded angle frame construction for a rugged and durable unit. The fan panel has a deep spun orifice for maximum efficiency. AL fans utilize Coolair’s exclusive drive assembly used on our fans for over 80 years. The die-formed aluminum blades are bolted to a cast aluminum hub, which also serves as the fan pulley. Power is applied through V-belts directly to the propeller with the blade load concentrated directly over the fan bearings, thus eliminating overhung bearing load. AL fans are available with single- or two-speed totally enclosed motors.
Available sizes:
24”, 30”, 36”, 42”, 48”, & 54”

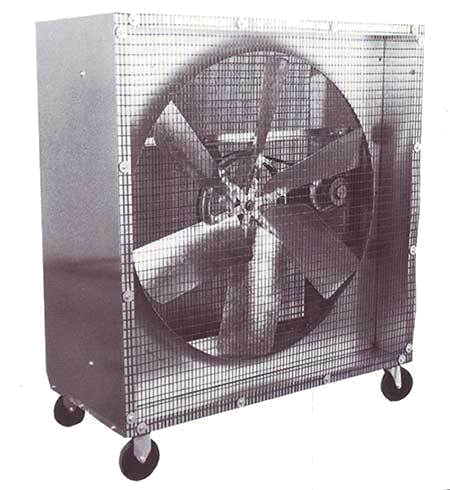

MCF Belt Driven Fan
High volume, heavy duty mobile air circulator for cooling factories, warehouses, garages, loading docks, processing lines or any other hot, inaccessible areas where people must work. The Coolair mobile air circulator can be rolled to wherever it is needed on four heavy duty casters.
Available size:
36”
NBC Belt Driven Fan
Now you can buy Coolair quality and our unique blade design at a savings to you and your customers. Type NBC fans are the answer to your ventilation requirements. We utilize our innovative drive assembly which applies power through V-belts directly to the propeller. Blade load is concentrated directly over the bearings for more economical operation and longer bearing life. Type NBC fans feature 3 cast aluminum airfoil blades secured to a cast aluminum hub. This unique blade assembly has been engineered to provide durability, corrosion resistance, and optimum efficiency. Our use of quality materials and precise engineering techniques in constructing blade assemblies assures you of years of quiet, trouble-free service. When economy is measured in terms of cubic feet of air per minute per dollar invested, Coolair fans are today’s best investment. Coolair uses only the most efficient ball bearing, totally enclosed motors available. Coolair provides recommendations on your specific needs for confinement rearing of poultry, hogs and other livestock. Contact us with your particulars.
Available sizes:
36”, 52”, & 54”
NBF Belt Driven Fan
American Coolair’s Type NBF fan provides the solution to fresh air ventilation in most types of farm buildings. Type NBF fans are built to give you years of heavy-duty trouble-free service. The rugged, belt-driven construction operates in any position, has permanently lubricated ball bearings, and is available with single- or tw o-speed totally enclosed motors. Coolair has developed a complete ventilation system for farm use combining the Type NBF fan with a Type LRW all aluminum shutter and heavy gauge galvanized steel wall housing (square box or slope) for exterior mounting, allowing a maximum of unobstructed interior space. EXCLUSIVE DRIVE ASSEMBLY. Our engineers have developed an innovative drive assembly for the Type NBF fan. Power is applied through V-belts directly to the propeller with blade load concentrated directly over the bearings to eliminate overhung bearing load. The exclusive, time tested design has been widely acclaimed by engineers. Our use of quality materials and precise engineering techniques in constructing wheel assemblies assure you of years of quiet, trouble-free service. BASIC COMPONENTS. Both the fan panel and the uprights which support the motor and propeller are formed from heavy-gauge steel for maximum strength and rigidity. The propeller is composed of a heavy cast wheel with six die formed blades individually mounted. Painted parts are coated with a thermosetting epoxy coating to provide a protective coating rated excellent for hardness, impact resistance, adhesion and chemical resistance. PERFORMANCE AND EFFICIENCY. When economy is measured in terms of cubic feet of air per minute per dollar invested, the Type NBF wall exhaust fan is unsurpassed. American Coolair’s Type NBF fan is today's best investment. Coolair uses only the most efficient totally enclosed ball bearing motors available. Motors up through 1 horsepower are resilient base. The NBF fan is available as a fully asembled unit in the slope wall housing.
Available sizes:
30”, 36”, 42”, 48”, 54”, & 60”
NCF Belt Driven Fan
Now you can buy Coolair quality and our unique blade design at a savings to you and your customers. The NCF Fans are the answer to your ventilation requirements. We utilize our innovative drive assembly which applies power through V-belts directly to the propeller. Blade load is concentrated directly over the bearings for more economical operation and longer bearing life. Performance and efficiency are the keynotes to the Coolair NCF Fans. Our use of quality materials and precise engineering techniques in constructing blade assemblies assures you of years of quiet, trouble-free service. When economy is measured in terms of cubic feet of air per minute per dollar invested, Coolair fans are today’s best investment. Coolair uses only the most efficient ball bearing motors available. They are totally enclosed motors. Coolair provides recommendations on your specific needs for confinement rearing of poultry, hogs and other livestock. Contact us with your particulars.
Available sizes:
36” & 48”
NEF Belt Driven Fan
Now you can buy Coolair quality and our unique blade design at a savings to you and your customers. The NEF Fans are the answer to your ventilation requirements. We utilize our innovative drive assembly which applies power through V-belts directly to the propeller. Blade load is concentrated directly over the bearings for more economical operation and longer bearing life. Performance and efficiency are the keynotes to the Coolair NEF Fans. Our use of quality materials and precise engineering techniques in constructing blade assemblies assures you of years of quiet, trouble-free service. When economy is measured in terms of cubic feet of air per minute per dollar invested, Coolair fans are today’s best investment. Coolair uses only the most efficient ball bearing motors available. They are totally enclosed motors. Coolair provides recommendations on your specific needs for confinement rearing of poultry, hogs and other livestock. Contact us with your particulars. The Coolair NEF Fans are offered unassembled or “knocked down”, so export shipping costs can be minimized.
Available sizes:
36”, 48”, 52”, & 54”
BK Horizontal Airflow Fan
Eliminate air stratification, reduce condensation, and eliminate hot and cold spots effectively and economically with American Coolair’s Type BK fans. These fans feature aluminum propellers directly mounted to totally enclosed motors, and encased in coated steel wire guards that comply with OSHA standards. Each BK fan comes with a rafter hanging kit designed to easily mount to a “2-by” wooden beam or up to 2-1/8” metal tubing as standard. Wall and ceiling mounting brackets, as well as chain kits, are also available to install the fans virtually anywhere in the building.In greenhouses, proper air circulation helps plants grow better by increasing the amount of CO2 at the plant level and reducing condensation on plant surfaces, reducing the risk of disease.In chicken or other livestock houses, proper air circulation provides even cooling and reduces livestock stress levels.In general, the amount of horizontal airflow needed is 2½ to 3 CFM per square foot of floor space. Use the fans whenever the house exhaust fan system is not operating at full capacity. Horizontal airflow fans should be installed between 6’ and 10’ high, but no less than 1’ from the roof. Fans should be placed above the top of the crops or livestock to be cooled. Use the figures to the left to determine the best fan layout for any type of building.
Available sizes:
18” & 20”
FH Horizontal Airflow Fan
Coolair HAF fans have blades mounted in a tube to give the air more directional throw. In greenhouses, proper air circulation helps plants grow better by increasing the amount of CO2 at the plant level and reducing condensation on plant surfaces, reducing the risk of disease. In chicken or other livestock houses, proper air circulation provides even cooling and reduces livestock stress levels. In general, the amount of horizontal airflow needed is 2½ to 3 CFM per square foot of floor space. Use the fans whenever the house exhaust fan system is not operating at full capacity. Horizontal airflow fans should be installed between 6’ and 10’ high, but no less than 1’ from the roof. Fans should be placed above the top of the crops or livestock to be cooled.
Available size:
18”
FGBC Fiberglass Fan
Our most energy efficient fans yet! FGBC fans are the answer to your ventilation requirements. Both the FGBC36 and FGBC52 utilize our innovative and proven drive assembly that allows Vbelt power to be transmitted directly through the bearings, resulting in more economical operation and increased bearing life. The cast aluminum airfoil blade assemblies are engineered to provide the most air performance available today.
Available sizes:
36” & 52”
FGDC Fiberglass Fan
When efficiency and reliability are top priority in today’s most hostile environments, the all new FGDC fans are the answer to your ventilation requirements. FGDC fans feature an all-fiberglass housing with discharge cone, and a rugged, heavy-duty all-aluminum support frame, designed for optimum performance and corrosion resistance. Each FGDC model uses a cast aluminum airfoil blade assembly specifically engineered for maximum efficiency. A variable speed controller is an available option for all FGDC models. The controller allows motor speed adjustment from full to half performance, ideal for minimum ventilation applications or wherever a precise flow rate is required.
Available sizes:
16”, 20”, 26”, 36”
